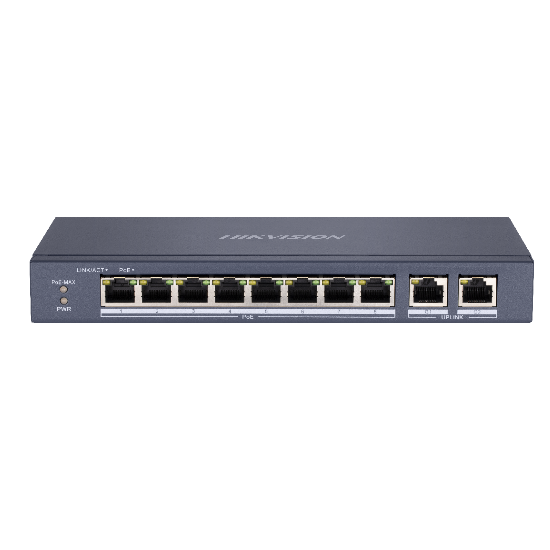

Model: DS-3E0110MP-E/M
Product Type: 10-Port Unmanaged PoE Switch (with 8 PoE Ports)

Product Description:
The DS-3E0110MP-E/M is a compact and reliable unmanaged PoE switch designed for small to medium-sized surveillance and network systems. Featuring 8 PoE ports and 2 uplink ports, this switch supports both data transmission and power supply over a single Ethernet cable, offering a streamlined and efficient solution for IP camera connectivity and other PoE-enabled devices.

Key Features:

• Port Configuration:

  • 10 × RJ45 ports total

  • 8 × 10/100 Mbps PoE ports

  • 2 × 10/100 Mbps uplink ports (non-PoE)

• PoE Standards Supported:

  • IEEE 802.3af (PoE)

  • IEEE 802.3at (PoE+)

  • Supports up to 30W per PoE port

• PoE Budget:

  • Total PoE power budget: 96W (max)

  • Intelligent power management to prevent overload

• Switching Capacity: 1.8 Gbps

• Packet Forwarding Rate: 1.34 Mpps

• MAC Address Table: Supports up to 2,000 MAC addresses

• Transmission Method: Store-and-forward

• Lightning Protection: 6 kV surge protection on all ports for enhanced durability

• Flow Control: IEEE 802.3x full-duplex, Backpressure half-duplex

• Power Supply:

  • Built-in power adapter

  • Input voltage: 100–240V AC, 50/60 Hz

• Power Consumption:

  • ≤ 100W (including PoE output)

  • ≤ 3W (without PoE load)

• Housing: Durable metal casing

• Installation: Desktop or wall-mountable

• Operating Temperature: 0°C to 40°C (32°F to 104°F)

• Humidity: 10% to 90% RH (non-condensing)

• Color: Black or dark grey (may vary slightly by batch)

Applications:
Ideal for small-scale surveillance systems, this unmanaged PoE switch is a plug-and-play solution for powering IP cameras, VoIP phones, wireless access points, and other PoE-compatible devices. Its compact design and robust performance make it suitable for offices, shops, and residential installations.
