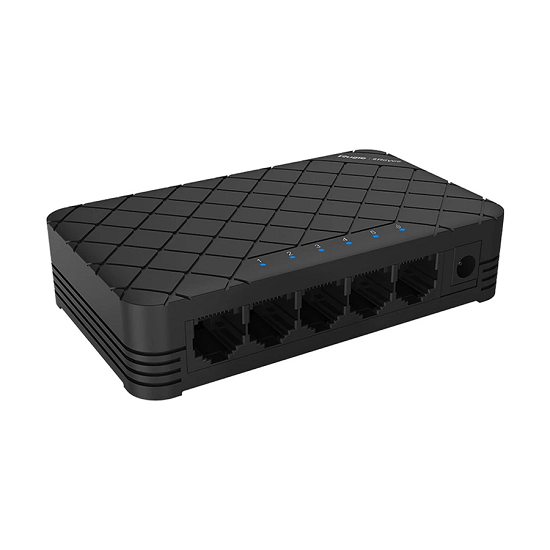

Model: RG-ES05
Type: 5-Port Unmanaged Ethernet Switch

Port Configuration:

• Total Ports: 5

• Port Type: 10/100 Mbps RJ45 Ethernet ports

• Auto-Negotiation: Supports auto MDI/MDIX for simplified cable connections

Performance Specifications:

• Switching Capacity: 1 Gbps

• Packet Forwarding Rate: Up to 0.74 Mpps

• MAC Address Table: Supports up to 1,000 MAC addresses

• Buffer Memory: Integrated buffer for stable data transmission

• Backplane Bandwidth: Sufficient for small office and home networking requirements

Power Supply:

• External power adapter

• Low power consumption design for energy efficiency

Build & Design:

• Material: Compact plastic casing

• Mounting Options: Desktop placement

• LED Indicators: Individual port status indicators for quick troubleshooting

Color: Typically available in matte black or dark gray finish (subject to model version)

Operating Environment:

• Temperature Range: 0°C to 40°C (operating)

• Humidity: 10% to 90% non-condensing

• Suitable for home networks, small offices, and SOHO environments

Key Features:

• Plug-and-play installation; no configuration required

• Silent operation with fanless design

• Stable data transmission ideal for IP cameras, printers, PCs, and VoIP
