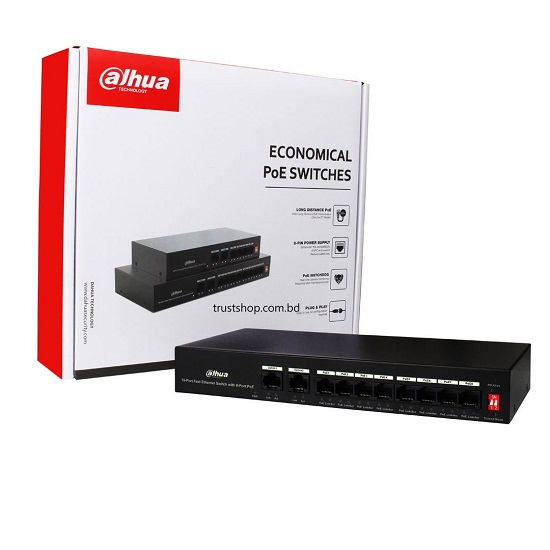

Product: DH-PFS3009-8ET-65 – 8-Port PoE Switch

The DH-PFS3009-8ET-65 is a high-performance 8-Port PoE (Power over Ethernet) Switch designed to provide reliable power and data connectivity to IP cameras, access points, and other PoE-enabled devices. With strong build quality and intelligent network management capabilities, this switch is a robust solution for small to medium-scale surveillance and networking applications.

Key Features:

• Model: DH-PFS3009-8ET-65

• Device Type: Unmanaged PoE Ethernet Switch

• Ports:

  • 8 × 10/100 Mbps PoE Ethernet ports

  • 1 × 10/100 Mbps uplink Ethernet port

• PoE Standard: IEEE 802.3af / IEEE 802.3at compliant

• PoE Power Output:

  • Max 30W per port

  • Total PoE power budget: 65W

• Switching Capacity: 1.8 Gbps

• Packet Forwarding Rate: 1.34 Mpps

• Transmission Distance:

  • Standard mode: up to 100 meters

  • Extended mode: up to 250 meters (10 Mbps)

• Power Supply: Built-in power adapter, AC 100~240V

• Power Consumption: ≤ 72W (total)

• Surge Protection:

  • 2KV Ethernet port surge protection

• Working Temperature: -10°C to +55°C

• Cooling Method: Fanless, silent operation

• Housing Material: Sturdy metal enclosure for long-term durability

• Mounting Options: Desktop or wall-mountable

• LED Indicators: Power, PoE status, and link/activity indicators for each port

• Other Features:

  • Plug-and-play functionality, no configuration required

  • Supports CCTV mode for long-distance transmission and port isolation

  • Intelligent PoE management for power control and overload protection

Applications:

The DH-PFS3009-8ET-65 is ideal for powering multiple IP cameras in security systems, as well as for office networks, small enterprise setups, and environments requiring both data and power over a single cable. It ensures stable, efficient, and secure network operation, even in extended-range deployments.
