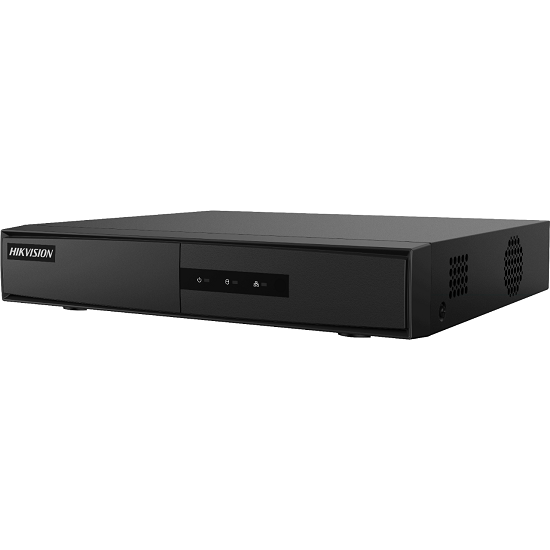

???? DS-7104NI-Q1-M 4-Channel Network Video Recorder (NVR)

The DS-7104NI-Q1-M is a compact 4-channel NVR designed for small to medium surveillance systems. With robust decoding capabilities, efficient video compression, and remote access support, this unit delivers reliable recording and playback for IP camera networks.

???? Key Specifications:

• Model: DS-7104NI-Q1-M

• Video Input: Supports up to 4 IP cameras

• Maximum Resolution: Up to 4MP recording resolution

• Decoding Capacity: 1-ch @ 4MP / 2-ch @ 1080p real-time playback

• Video Output: HDMI and VGA (up to 1920 × 1080 resolution)

• Compression: H.265+/H.265/H.264+/H.264 for optimized storage and bandwidth usage

• Audio Support: IP camera audio input supported (via network), no built-in microphone or RCA input

• SATA Interface: 1 × SATA interface, supports up to 6TB HDD (hard drive not included)

• Network Interface: 1 × RJ45 10/100 Mbps Ethernet port

• USB Interface: 2 × USB 2.0 ports (for mouse, backup, firmware upgrade)

• Color: Matte black casing with compact, fanless design for silent operation

• Power Supply: 12V DC

⚙️ Features:

• Supports third-party network cameras with ONVIF compatibility

• Plug-and-play setup with automatic camera detection

• Remote viewing via mobile app or PC client

• Smart search and playback functions for efficient footage review

• Compact design suitable for desktop or concealed installations

• Ideal for homes, small offices, or retail spaces
