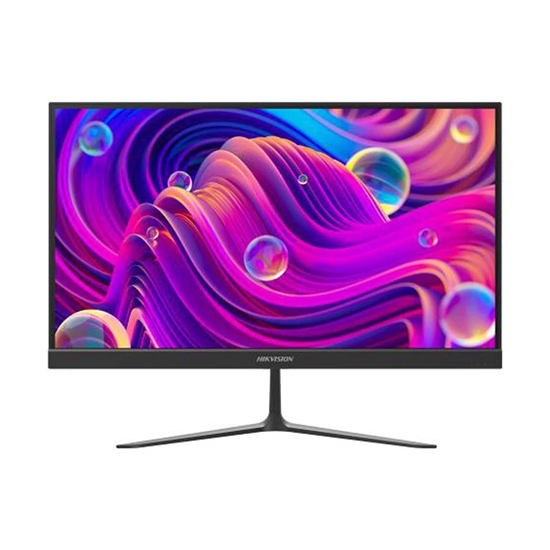

Product Model: DS-D5022FS-CBD
Product Type: 22-Inch LED Monitor

The DS-D5022FS-CBD is a high-performance 22-inch LED monitor designed for continuous operation in demanding environments such as surveillance control rooms, monitoring stations, or professional workspaces. It delivers excellent visual clarity and consistent performance, making it ideal for both live video monitoring and general display tasks.

Technical Specifications:

• Screen Size: 21.5 inches (viewable)

• Panel Type: LED-backlit LCD panel

• Resolution: Full HD 1920 × 1080 @ 60Hz

• Aspect Ratio: 16:9

• Brightness: 250 cd/m² (typical)

• Contrast Ratio: 1000:1 (typical)

• Viewing Angle: 178°(H) / 178°(V) wide-view angle for better visibility from different positions

• Response Time: 5 ms (typical), ensuring smooth video playback

• Color Depth: 16.7 million colors for natural image reproduction

• Display Color: Black matte finish, professional and minimalistic appearance

Audio and Connectivity:

• Built-in Speaker: Yes, integrated stereo speakers for direct audio output

• Audio Input: 1× 3.5mm audio-in jack

• Audio Output: 1× 3.5mm headphone out jack

• HDMI Input: 1× HDMI port for high-definition video input

• VGA Input: 1× VGA port for legacy connectivity

• Power Supply: 100–240V AC, 50/60Hz (internal power supply)

• Power Consumption: ≤ 30W (operating), ≤ 0.5W (standby)

Mounting and Design:

• Mount Type: VESA standard (100 mm × 100 mm) wall or arm mount compatible

• Stand Type: Included adjustable stand for desktop use

• Chassis Design: Slim bezel design for multi-screen setups

• Operating Temperature: 0°C to 40°C

• Storage Temperature: -20°C to 60°C

• Relative Humidity: 10%–90% (non-condensing)

Key Features:

• Flicker-free display for reduced eye strain during prolonged use

• Anti-glare coating minimizes reflections under various lighting conditions

• Designed for 24/7 operation stability in surveillance and security applications

• Eco-friendly design with energy-saving technology

• Robust build with long operational life for reliable performance

Usage Scenarios:

This 22-inch monitor is optimized for use in surveillance systems, security control rooms, office environments, retail monitoring stations, and anywhere that requires long-duration display performance with sharp image reproduction.
