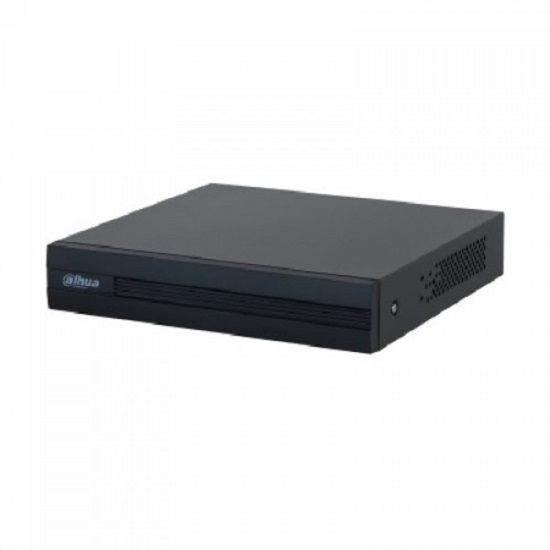

Product Model: DH-XVR1B08-I – 8-Channel Digital Video Recorder (XVR)

Description:

The DH-XVR1B08-I is a high-performance 8-channel XVR (X Video Recorder) designed for flexible surveillance setups across commercial and residential environments. Engineered for advanced video compression, high-definition recording, and intelligent video analytics, this unit delivers reliability, clarity, and efficiency in video security systems.

Key Features:

• Video Input:
  • 8 BNC channels supporting multiple formats (AHD/TVI/CVI/CVBS)
  • Auto-detect signal type for seamless integration

• IP Channel Support:
  • Supports up to 2 additional IP channels
  • Max 10 channels total (8 analog + 2 IP)

• Audio:
  • 1 Channel RCA Audio In
  • 1 Channel RCA Audio Out
  • Two-way audio supported

• Compression Format:
  • Video: H.265+/H.265 – optimized for efficient storage and bandwidth usage
  • Audio: G.711A

• Recording Resolution:
  • Up to 1080N / 720P recording for each analog channel
  • Supports 1080P Lite real-time recording

• Display Output:
  • HDMI and VGA outputs with up to 1080P resolution for local display

• Hard Drive Support:
  • 1 SATA port, supports up to 6TB HDD (not included)

• Smart Features:
  • Built-in AI functions for enhanced motion detection (depending on camera compatibility)
  • Intelligent video analytics for smarter monitoring
  • Supports real-time video preview and playback

• Network Features:
  • Ethernet: 1 RJ-45 port (100 Mbps)
  • Remote monitoring via app or web browser
  • P2P cloud connectivity for quick remote access
  • Supports backup via USB or network

• USB Interface:
  • 2 USB 2.0 ports for mouse, backup, or firmware upgrade

• Power Supply:
  • DC12V / 2A

• Housing & Build:
  • Compact metal case for efficient heat dissipation
  • Fanless design for silent operation

• Color:
  • Matte black finish

• Dimensions & Weight:
  • Lightweight and compact for easy rack or desktop installation

Ideal Applications:
Perfect for small-to-medium surveillance systems including retail, office buildings, residential complexes, and small warehouses requiring multi-channel analog and IP camera support.
