Model: DS-2CD1343G2-LIU

Product Description:

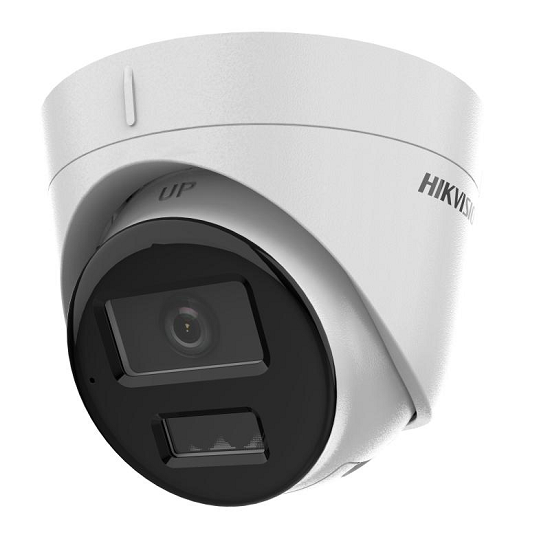

A compact and intelligent 4MP fixed turret network camera designed for 24/7 color monitoring, enhanced with smart detection capabilities and built-in audio. Ideal for both indoor and outdoor security applications where image clarity and proactive alerts are essential.

Key Specifications & Features:

• Image Sensor:
  1/3" Progressive Scan CMOS sensor capturing video at a maximum resolution of 2560 × 1440 (4 Megapixels), delivering clear and crisp visuals.

• Lens Options:
  Fixed focal length lens available in 2.8 mm and 4 mm options:

  • 2.8 mm: Wide-angle view (~104° horizontal) for broader coverage.

  • 4 mm: Narrower field (~84° horizontal) for focused areas.

• Minimum Illumination:

  • Color: 0.001 Lux @ F1.0 (AGC on)

  • With white light: 0 Lux (full-color imaging even in complete darkness)

• Supplemental White Light:

  • Built-in smart white light for night visibility.

  • Effective illumination distance: up to 30 meters.

• Infrared (IR) Status:
  This model does not use IR LEDs — it relies solely on white light technology for full-color night monitoring.

• Audio Support:

  • Built-in microphone for real-time audio capture.

  • Mono audio input with noise filtering.

  • Supports audio compression using standard codecs such as G.711, G.722.1, G.726, and AAC.

• Wide Dynamic Range & Noise Reduction:

  • 120 dB true WDR for balanced exposure in challenging lighting.

  • 3D Digital Noise Reduction (3D DNR) ensures cleaner video in low-light scenes.

• Smart Detection Capabilities:

  • Deep learning-based human and vehicle target classification.

  • Motion detection, tampering alarms, and configurable event notifications.

  • Supports up to 4 programmable privacy masking zones.

• Video Compression & Streaming:

  • Efficient streaming using H.265+, H.265, H.264+, and H.264.

  • Dual stream support for optimized bandwidth usage.

  • Adjustable resolution and frame rates up to 25/30 fps.

• Storage Options:

  • Integrated microSD card slot supports up to 256 GB local storage for video recording.

• Network Support:

  • Full suite of standard network protocols.

  • ONVIF compliant for integration with third-party systems.

• Power Supply:

  • 12 VDC ±25% or Power over Ethernet (PoE, 802.3af).

  • Max power consumption: approximately 5 W.

• Environmental Protection:

  • Weatherproof design with IP67 rating for outdoor use.

  • Operating temperature range: -30°C to +60°C.

• Construction & Color:

  • Turret-style compact form factor with a clean white finish.

  • Durable housing made from a combination of metal and plastic.
