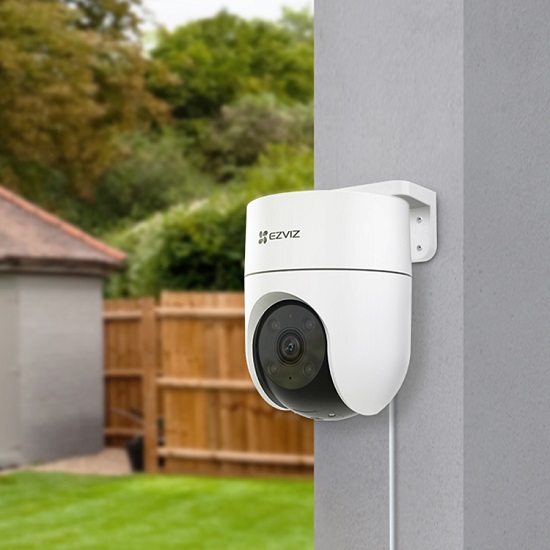

Full HD Smart Pan & Tilt Outdoor Camera – Model CS-H8C (1080p)

The CS-H8C (1080p) is a compact, motorized outdoor security camera designed to deliver 360° coverage, smart tracking, and vivid Full HD video. With its ability to pan and tilt remotely, combined with color night vision and two-way audio, this camera is ideal for users seeking reliable outdoor monitoring in a single, easy-to-install unit.

Camera & Imaging

• Model: CS-H8C (1080p)

• Image Sensor: 1/2.9" Progressive Scan CMOS

• Maximum Resolution: 1920 × 1080 (Full HD 1080p)

• Frame Rate: Up to 15 fps

• Lens Type: Fixed wide-angle

• Focal Length: 2.8mm

• Field of View:

  • Horizontal: ~104°

  • Vertical: ~55°

  • Diagonal: ~121°

Pan & Tilt Capabilities

• Pan Range: 0° to 340° (motorized)

• Tilt Range: -15° to 80° (motorized)

• Digital Zoom: Up to 8×

• Motorized Coverage: Enables nearly complete area viewing from a single device

Night Vision

• IR Night Vision Range: Up to 30 meters (98 feet)

• Color Night Vision: Integrated dual-LED spotlight

• Smart Night Mode: Automatically switches between IR and color based on motion

Audio & Communication

• Two-Way Audio: Built-in microphone and speaker

• Real-Time Talk: Speak and listen through the mobile app

• Custom Audio Alerts: Option to upload personalized warning messages

Smart Detection & AI Features

• Human Detection: Recognizes human motion to minimize false alerts

• Auto Tracking: Follows moving objects within the camera’s view

• Motion Alerts: Instant push notifications to your mobile device

• Customizable Detection Zones: Monitor specific areas and reduce unnecessary alerts

Storage & Video Compression

• Local Storage: Supports microSD cards up to 512GB

• Cloud Storage: Optional secure cloud backup available

• Video Compression: H.265 – reduces file size without losing clarity

Connectivity & Remote Access

• Wi-Fi: 2.4GHz wireless support

• Mobile App Control: Full access to live view, playback, and settings

• Voice Assistant Compatibility: May support integration with voice-controlled platforms (depends on firmware)

⚙️ Installation & Power

• Mount Type: Ceiling or wall mount (bracket included)

• Power Supply: 12V DC input

• Setup: Quick app-based pairing using QR code

• Cable Management: Designed for neat outdoor installations

Weatherproof Build

• Weather Rating: IP66 – dust-tight and rain-resistant

• Operating Temperature: -30°C to 60°C (-22°F to 140°F)

• Rugged exterior suitable for all outdoor conditions

✅ Ideal Applications

• Home entrances and driveways

• Open yards and gardens

• Business storefronts and parking areas

• Anywhere needing wide, flexible surveillance coverage

The CS-H8C (1080p) provides essential features — like pan & tilt control, two-way audio, and Full HD clarity — in a compact outdoor design. Whether you're monitoring a home or business, this camera delivers real-time protection with intelligent tracking and full-area visibility.
