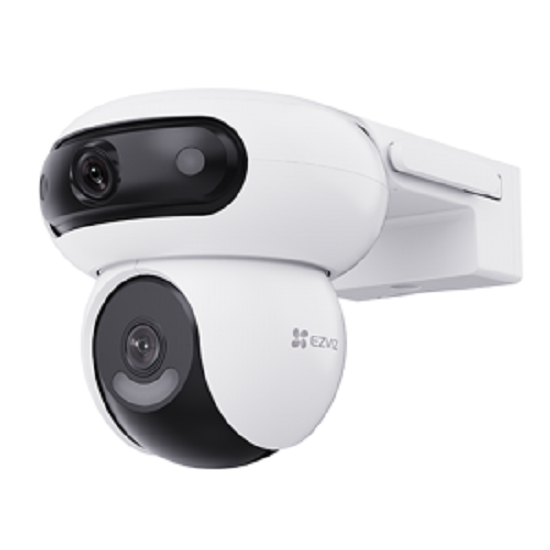

360° Dual-Lens Panoramic Camera – Model CS-H90 (4MP + 4MP)

The CS-H90 (4MP + 4MP) is a powerful dual-lens surveillance camera designed to deliver seamless 360-degree panoramic coverage with dual 4MP lenses working in tandem. Built to monitor large areas with exceptional clarity, this camera features smart tracking, AI-powered detection, two-way audio, and vivid color night vision — all in one device.

Camera Specifications

• Model: CS-H90 (4MP + 4MP)

• Lenses: Dual fixed wide-angle lenses

• Resolution (per lens): 2560 × 1440 (4 Megapixels)

• Combined Output: Ultra-wide panoramic view with stitched video from both lenses

• Field of View:

  • Horizontal: Full 360°

  • Vertical: ~90°

• Zoom: 8× digital zoom for close-up inspection

Night Vision

• IR Night Vision: Up to 30 meters (approx. 98 feet)

• Color Night Vision: Enabled by dual integrated spotlights

• Smart Night Mode: Auto-switch between infrared and color night vision based on motion events

Audio Capabilities

• Two-Way Audio: Built-in microphone and speaker

• Real-Time Communication: Talk and listen via mobile app

• Custom Voice Alerts: Option to upload or record personalized warning messages

AI & Smart Detection

• Human Detection: Distinguishes people from pets or objects to reduce false alerts

• Auto Motion Tracking: Follows detected movement within the camera’s stitched 360° view

• Active Defense:

  • Loud siren

  • Flashing lights for intrusion deterrence

• Customizable Detection Zones: Focus surveillance on high-risk areas

Storage & Video Compression

• Local Storage: Supports microSD card up to 512GB

• Cloud Storage: Optional encrypted cloud backup (subscription-based)

• Video Compression: H.265 – high-efficiency format reduces bandwidth and storage use

Connectivity & Control

• Network: 2.4GHz Wi-Fi (stable signal with dual antennas)

• Remote Access: Full control, live view, and event playback via supported mobile app

• Smart Home Integration: Compatible with select voice assistant platforms (varies by firmware)

⚙️ Installation & Setup

• Power Supply: 12V DC

• Mounting: Ceiling or wall mountable (hardware included)

• Setup Process: Easy pairing via QR code and app

• Cable Management: Concealed design for professional installations

Build & Environmental Protection

• Weatherproof Rating: IP66 – suitable for outdoor environments

• Operating Temperature: -30°C to 60°C (-22°F to 140°F)

• Build Material: Sturdy, weather-sealed housing with clean white finish

✅ Best For:

• Wide open yards and gardens

• Driveways, rooftops, or parking lots

• Warehouses and industrial zones

• Full perimeter home or business protection

The CS-H90 (4MP + 4MP) redefines 360° protection with dual-lens power, sharp resolution, and intelligent tracking. It’s a top-tier choice for those who want full visibility, real-time response, and day-and-night security in one smart solution.
