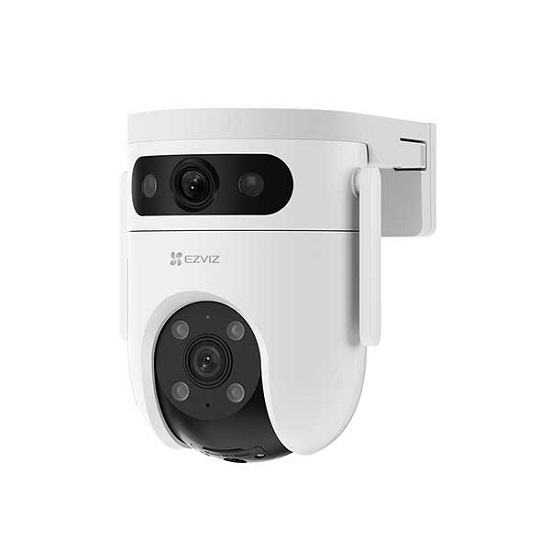

Dual-Lens 360° Pan & Tilt Security Camera – Model CS-H9C (3MP + 3MP)

The CS-H9C (3MP + 3MP) is a high-performance dual-lens surveillance camera designed to provide complete 360° visibility with zero blind spots. Featuring two independently controlled 3MP lenses, smart motion tracking, active deterrence, and color night vision, it’s built for users who need maximum outdoor or indoor coverage in a single device.

Camera & Optics

• Model: CS-H9C (3MP + 3MP)

• Total Lenses: Dual cameras, each with 3MP resolution

• Combined Viewing Power: Full panoramic coverage with high-definition detail from two lenses

• Resolution (each lens): 2304 × 1296 (3 Megapixels)

• Lens Type: Fixed (wide-angle per lens)

• Field of View (combined): 360° horizontal coverage, ~90° vertical

???? Pan & Tilt Capabilities

• Pan Range: Full 360° rotational coverage (automated switching between lenses)

• Tilt Range: Individually adjustable vertical angle

• Digital Zoom: Up to 8× for detailed inspection

• Smooth, motorized transitions for seamless viewing experience

Night Vision

• Infrared Range: Up to 30 meters (98 feet)

• Color Night Vision: Enabled via dual spotlights

• Smart Mode: Auto-switch between IR and color night vision when motion is detected

Audio & Interaction

• Two-Way Audio: Built-in mic and speaker

• Voice Communication: Real-time interaction through mobile app

• Custom Audio Alerts: Option to play user-recorded warning messages

Smart Security Features

• Human Detection: AI-based recognition to filter false alarms

• Auto Tracking: Follows moving targets within view

• Active Defense:

  • Dual flashing lights

  • Loud built-in siren

• Custom Detection Zones: Monitor specific areas while ignoring others

Storage & Compression

• Local Storage: Supports microSD card up to 512GB

• Cloud Storage: Optional secure cloud service (if enabled)

• Compression: H.265 – saves space while retaining high video quality

Network & Remote Access

• Wi-Fi: 2.4GHz with enhanced stability

• App Control: Full access to live view, playback, and notifications from smartphone or tablet

• Smart Integration: May support voice assistant platforms (if enabled by firmware)

⚙️ Power & Installation

• Power Supply: 12V DC

• Mounting Options: Wall or ceiling installation (hardware included)

• Setup: Quick pairing via QR scan and guided app setup

????️ Weather & Durability

• Weather Resistance: IP66 – resistant to rain, dust, and wind

• Operating Conditions: -30°C to 60°C (-22°F to 140°F)

• Robust housing ideal for year-round outdoor use

✅ Ideal For:

• Large open spaces like parking lots or driveways

• Perimeter protection of homes or businesses

• Wide yards, gardens, or farm entrances

• Indoor warehouses or expansive retail areas

The CS-H9C (3MP + 3MP) offers all-around protection with advanced features typically requiring multiple cameras. With dual lenses, active tracking, two-way talk, and powerful night vision — this all-in-one solution redefines smart surveillance for modern security needs.
