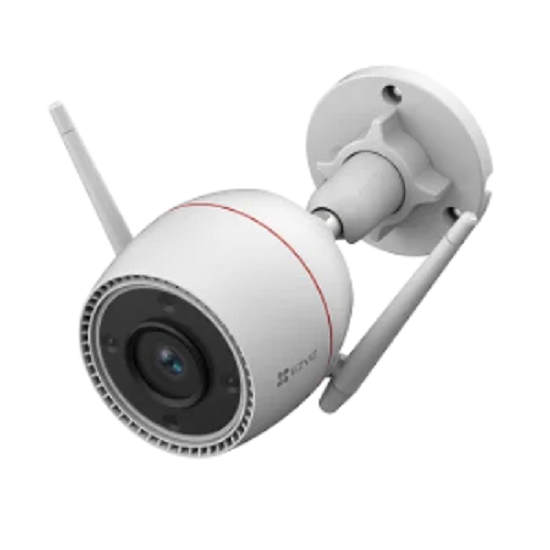

???? Compact Outdoor Wi-Fi Camera – Model CS-H3C (3MP)

The CS-H3C (3MP) is a smart and durable outdoor Wi-Fi camera offering 3MP resolution, intelligent motion detection, and reliable night vision. Designed for effortless setup and everyday protection, it delivers clear video footage and essential security features in a compact weather-resistant body.

???? Core Specifications

• Model: CS-H3C (3MP)

• Image Sensor: 1/2.8" Progressive Scan CMOS

• Maximum Resolution: 2304 × 1296 (3 Megapixels)

• Frame Rate: Up to 15 fps @ 3MP

???? Lens & Field of View

• Lens Type: Fixed

• Focal Length: 2.8mm

• Field of View:

  • Horizontal: ~104°

  • Vertical: ~55°

  • Diagonal: ~121°

• Optimized for wide-area monitoring such as entrances, yards, or side alleys

???? Night Vision

• IR Night Vision Range: Up to 30 meters (98 feet)

• Smart IR: Automatically adjusts infrared intensity to avoid overexposure

• Clear black-and-white night footage even in complete darkness

???? Audio Features

• Microphone: Built-in high-sensitivity mic

• Audio Type: One-way audio

• Captures ambient sounds for added situational awareness

???? Smart Detection

• Motion Detection: Sends instant alerts when movement is detected

• Human Shape Recognition: (Feature availability may vary)

• Configurable activity zones to reduce false alarms

???? Connectivity

• Wireless: Wi-Fi 2.4GHz (IEEE802.11b/g/n)

• Antenna: Built-in or external dual-antenna for stable signal

• Remote Access: Full control and live view via mobile app or web portal

???? Storage Options

• Local Storage: microSD card slot (supports up to 256GB)

• Cloud Storage: Optional encrypted cloud backup (if service enabled)

• Video Compression: H.265 for reduced storage use with high-quality video

⚙️ Power & Installation

• Power Supply: 12V DC ±10%

• Power Consumption: ≤6W

• Mounting: Wall or ceiling mount (mounting kit included)

• Setup: Quick pairing via QR code or app scan

????️ Durability

• Weatherproof Rating: IP67

• Operating Temperature: -30°C to 60°C (-22°F to 140°F)

• Dust-tight and fully protected against heavy rain

???? Best For

• Front doors and side entrances

• Small yards and gardens

• Home garages and corridors

• Light commercial surveillance

The CS-H3C (3MP) combines essential security features — like HD video, smart motion alerts, and night vision — into a compact, user-friendly device built to withstand the outdoors. It's a perfect entry-level outdoor surveillance solution with reliable performance day and night.
