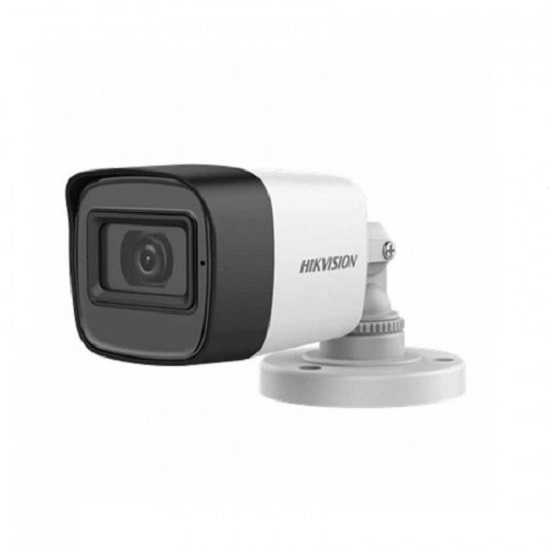

???? 5MP Turbo HD Bullet Camera – Model DS-2CE16H0T-ITPFS

The DS-2CE16H0T-ITPFS is a high-performance 5MP HD bullet camera designed for analog HD surveillance systems. It combines crystal-clear imaging, built-in audio, and powerful infrared capabilities in a compact and weather-resistant design, making it ideal for indoor and outdoor use.

???? Key Specifications

• Model: DS-2CE16H0T-ITPFS

• Camera Type: HD-TVI (Turbo HD) Bullet Camera

• Image Sensor: 1/2.7" Progressive Scan CMOS

• Effective Pixels: 2560 × 1944 (5 Megapixels)

• Minimum Illumination: 0.01 Lux @ (F1.2, AGC on), 0 Lux with IR

???? Lens & Field of View

• Lens Options: 2.8mm, 3.6mm, or 6mm fixed lens (model dependent)

• Viewing Angle (approx.):

  • 2.8mm: ~85°

  • 3.6mm: ~70°

  • 6mm: ~45°

• Ideal for close to medium-range monitoring like entrances, hallways, or storefronts

???? Infrared & Night Vision

• IR Distance: Up to 30 meters (98 feet)

• Smart IR: Prevents overexposure in low-light conditions

• Day/Night Switching: ICR (Infrared Cut Filter Removable) for true color reproduction during the day and crisp B&W at night

???? Audio Capability

• Built-in Microphone: Yes

• Audio Transmission: Coaxial audio over one cable (via TVI protocol)

• Captures synchronized audio and video using compatible DVRs

???? Design & Housing

• Color: White body with black front bezel

• Housing Type: Bullet

• Material: Metal front housing with plastic rear

• Mount Type: Wall or ceiling bracket with 3-axis adjustment

????️ Environmental Protection

• Weatherproof Rating: IP67

• Operating Conditions: -40°C to 60°C (-40°F to 140°F), humidity ≤90% (non-condensing)

• Suitable for outdoor and harsh weather environments

⚙️ Video Output & Compatibility

• Video Output Formats: Switchable TVI / AHD / CVI / CVBS (Analog)

• Signal Transmission: Over coaxial cable (up to 500m with RG6)

• Compatible with various DVRs supporting HD analog formats

⚡ Power Requirements

• Power Supply: 12V DC ±25%

• Power Consumption: Max. 4.3W

???? Additional Features

• Digital Wide Dynamic Range (DWDR)

• 2D Digital Noise Reduction (DNR)

• Backlight Compensation (BLC)

• Easy plug-and-play installation with existing coaxial infrastructure

This model is an excellent choice for upgrading analog systems to 5MP resolution with the added benefit of integrated audio — without needing IP conversion. It’s ideal for small businesses, residential properties, and retail environments needing both video and audio surveillance.
