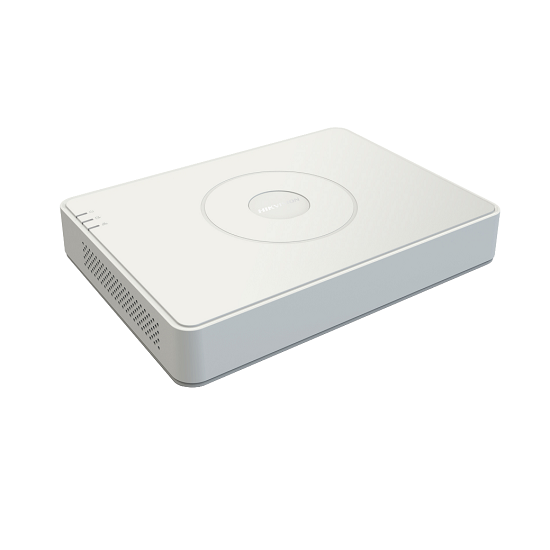

16-Channel Turbo HD DVR with AcuSense – Model: IDS-7116HQHI-M1/S

The IDS-7116HQHI-M1/S is a smart and scalable 16-channel high-definition DVR equipped with integrated AcuSense technology, designed to bring intelligent analytics to analog video surveillance. Supporting a hybrid mix of analog and IP cameras, this DVR offers advanced motion detection, real-time human/vehicle classification, and efficient video storage. It’s ideal for mid-sized security setups where accuracy, reliability, and flexibility are essential.

Key Features:

• Model: IDS-7116HQHI-M1/S

• Video Input:

  • 16 analog BNC channels supporting HD-TVI, AHD, CVI, and CVBS formats

  • Up to 18 IP cameras supported (when enhanced IP mode is enabled)

  • IP camera input supports up to 6 MP resolution per channel

• AcuSense Technology:

  • Built-in deep learning algorithm for human and vehicle classification

  • False alarm reduction for motion events (e.g., filters out irrelevant movement)

  • Smart search and playback for quicker review based on target type

• Recording Resolution:

  • Analog channels support up to 5MP Lite / 4MP / 1080p / 720p

  • Real-time encoding per channel depending on signal format

• Video Compression:

  • Supports H.265 Pro+, H.265 Pro, H.265, and H.264 for bandwidth and storage efficiency

• Display Output:

  • HDMI Output: Up to 1080p resolution

  • VGA Output: Up to 1080p

  • Simultaneous HDMI and VGA output

• Audio Support:

  • 1 RCA audio input, 1 RCA audio output

  • Supports two-way audio over coaxial

• Playback & Smart Search:

  • Up to 16-channel synchronous playback

  • Smart playback by human/vehicle filters for faster evidence review

• Storage Interface:

  • 1 SATA port, supports up to 10 TB HDD

• Network Interface:

  • 1 × RJ-45 Ethernet port (10/100 Mbps)

  • Supports remote access via mobile apps, web browser, and CMS software

• USB Ports:

  • 2 × USB 2.0 for backup, mouse, or data export

• Alarm I/O:

  • Not available in this streamlined version

• Power Supply:

  • 12 VDC ±10%

• Power Consumption:

  • ≤15 W (without HDD)

• Color:

  • Compact black chassis, fanless design for quiet operation

• Operating Conditions:

  • Temperature: -10°C to 55°C (14°F to 131°F)

  • Humidity: 10%–90% (non-condensing)

The IDS-7116HQHI-M1/S blends the reliability of analog recording with the intelligence of modern analytics. It's designed for medium-scale installations in environments that require effective human/vehicle detection, smooth hybrid support, and efficient storage — all packed into a compact, silent-running DVR.
