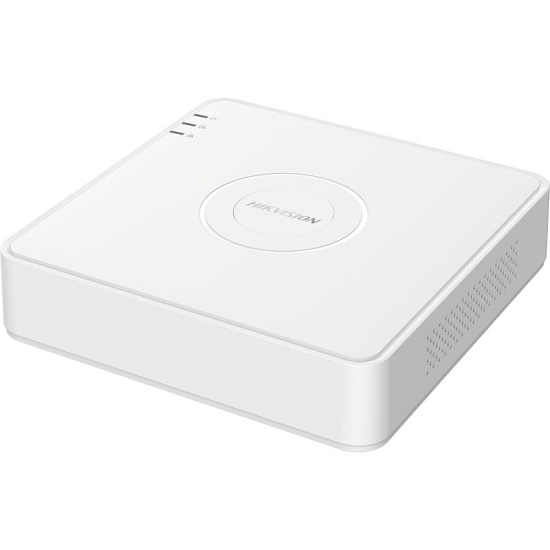

8-Channel Turbo HD DVR with AcuSense – Model: IDS-7108HQHI-M1/S

The IDS-7108HQHI-M1/S is a smart 8-channel HD digital video recorder featuring built-in AcuSense technology for enhanced video analytics. Designed for hybrid surveillance systems, it offers compatibility with multiple analog video formats, supports IP camera integration, and delivers precise human/vehicle classification — all within a compact, cost-effective form factor.

Key Features:

• Model: IDS-7108HQHI-M1/S

• Video Input:

  • 8 BNC channels supporting HD-TVI, AHD, CVI, and CVBS formats

  • Supports up to 10 IP cameras (with enhanced mode), with up to 6 MP per IP channel

• AcuSense Technology:

  • Human and vehicle target classification based on deep learning

  • Helps reduce false alarms from irrelevant motion (e.g., animals, leaves, shadows)

  • Smart search and playback filtering based on target type

• Recording Resolution:

  • Analog channels support up to 5MP Lite / 4MP / 1080p / 720p

  • Real-time recording with optimized resolution per channel

• Video Compression:

  • H.265 Pro+, H.265 Pro, H.265, and H.264

  • Enables high-efficiency storage and bandwidth management

• Display Output:

  • HDMI: Up to 1080p (1920 × 1080)

  • VGA: Up to 1080p

  • Simultaneous display supported

• Audio Support:

  • 1 RCA audio input and 1 RCA audio output

  • Two-way audio available via coaxial channel

• Playback & Search:

  • Up to 8-channel synchronous playback

  • Smart playback by human/vehicle for quicker event review

• Storage:

  • 1 SATA interface, supports hard drives up to 10 TB

• Network Interface:

  • 1 × RJ-45 Ethernet port (10/100 Mbps)

  • Supports remote access through mobile app, web browser, or CMS software

• USB Interface:

  • 2 × USB 2.0 for local backup and control

• Alarm I/O:

  • Not included (designed for streamlined, compact applications)

• Power Supply:

  • 12 VDC ±10%

• Power Consumption:

  • ≤10 W (without HDD)

• Color:

  • Black metal casing, compact and fanless for quiet operation

• Operating Conditions:

  • Temperature: -10°C to 55°C (14°F to 131°F)

  • Humidity: 10%–90% (non-condensing)

The IDS-7108HQHI-M1/S delivers intelligent video recording with deep learning-powered event filtering, seamless hybrid input, and efficient compression. It’s an excellent choice for small to medium-sized systems that need smart functionality in a reliable and affordable DVR.
