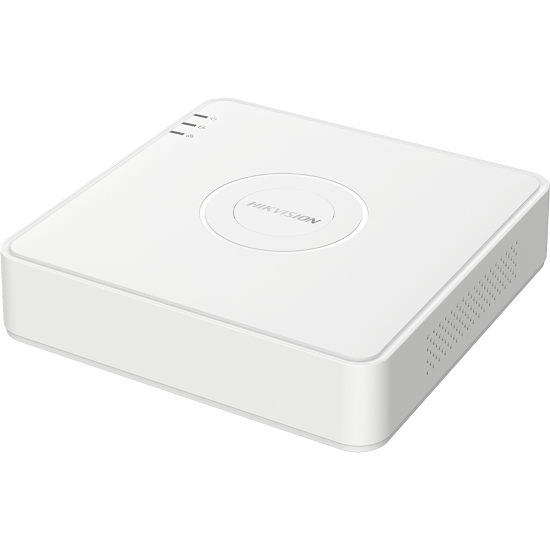

4-Channel Turbo HD DVR – Model: IDS-7104HQHI-M1/S

The IDS-7104HQHI-M1/S is a compact 4-channel high-definition digital video recorder tailored for small-scale surveillance installations. Supporting multiple HD analog formats and efficient video compression, this DVR offers reliable recording, remote monitoring, and flexible integration — making it ideal for homes, retail shops, and small offices.

Key Features:

• Model: IDS-7104HQHI-M1/S

• Video Input:

  • 4 BNC channels supporting HD-TVI, AHD, CVI, and CVBS signal formats

  • Supports up to 6 IP cameras with enhanced mode (up to 6 MP per IP channel)

• Recording Resolution:

  • Analog channels support up to 5MP Lite / 4MP / 1080p / 720p

  • Real-time encoding with adaptive stream management

• Video Compression:

  • H.265 Pro+, H.265 Pro, H.265, and H.264

  • Significantly reduces storage and bandwidth without compromising video quality

• Display Outputs:

  • HDMI Output: Up to 1080p (1920 × 1080)

  • VGA Output: Up to 1080p

  • Simultaneous HDMI/VGA display

• Audio Support:

  • 1 RCA audio input and 1 RCA audio output

  • Two-way audio over coaxial channel supported

• Playback:

  • Up to 4-channel synchronous playback

  • Smart search and playback controls for quick retrieval

• Storage:

  • 1 SATA interface, supports HDDs up to 10 TB

• Network Interface:

  • 1 × RJ-45 10/100 Mbps Ethernet port

  • Remote access via mobile app, web browser, or central management software

• USB Ports:

  • 2 × USB 2.0 for backup and device control

• Alarm I/O:

  • Not available in this model

• Power Supply:

  • 12 VDC ±10%

• Power Consumption:

  • Max 8 W (excluding HDD)

• Color:

  • Compact and durable black casing, desktop ready

• Operating Conditions:

  • Temperature: -10°C to 55°C (14°F to 131°F)

  • Humidity: 10%–90% (non-condensing)

The IDS-7104HQHI-M1/S is an efficient and cost-effective DVR solution for users seeking basic high-definition recording with strong compatibility and low power consumption. Its user-friendly design and essential feature set make it ideal for tight spaces and smaller surveillance systems.
