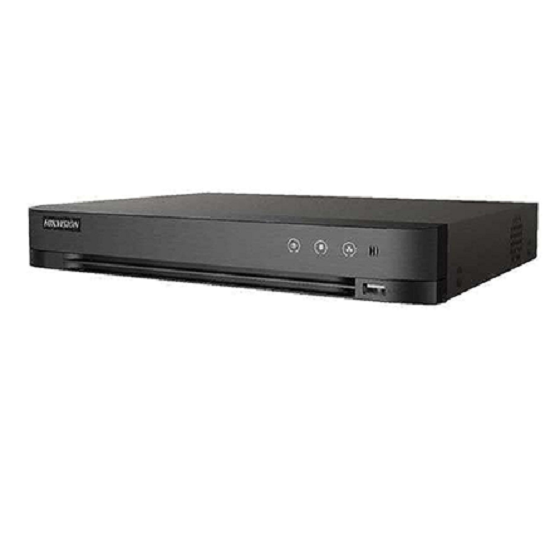

4-Channel Turbo HD DVR with AcuSense – Model: IDS-7204HQHI-M1/XT

The IDS-7204HQHI-M1/XT is a smart 4-channel HD digital video recorder designed to bring advanced analytics to analog surveillance systems. Featuring AcuSense technology, this compact DVR provides accurate human and vehicle detection, false alarm filtering, and efficient storage capabilities. It supports hybrid video inputs, making it a powerful upgrade for small-scale security installations in homes, shops, and offices.

Key Features:

• Model: IDS-7204HQHI-M1/XT

• Video Input:

  • 4 BNC analog channels, compatible with HD-TVI, AHD, CVI, and CVBS signal types

  • Supports up to 6 IP cameras (when enhanced IP mode is enabled), with resolutions up to 6 MP per IP channel

• AcuSense Smart Detection:

  • Built-in deep learning-based analytics

  • Smart filtering for human and vehicle classification

  • Reduces false alarms caused by irrelevant motion such as animals or leaves

• Video Compression:

  • H.265 Pro+, H.265 Pro, H.265, and H.264 for highly efficient recording and bandwidth savings

• Recording Resolution:

  • Analog input supports up to 5MP Lite / 4MP / 1080p / 720p

  • Real-time encoding supported

• Display Output:

  • HDMI: up to 4K (3840 × 2160)

  • VGA: up to 1920 × 1080 (1080p)

  • Simultaneous HDMI and VGA display

• Audio Support:

  • 1 × RCA audio input, 1 × RCA audio output

  • Two-way audio supported via coaxial cable

• Playback:

  • Up to 4-channel synchronous playback

  • Smart playback with search by target type (human/vehicle)

• Storage Capacity:

  • 1 SATA interface, supports HDDs up to 10 TB

• Alarm I/O:

  • 4 alarm inputs, 1 alarm output for event-triggered actions

• Network Interface:

  • 1 × RJ-45 10/100 Mbps Ethernet port

  • Remote monitoring via mobile app, browser, or central software

• USB Ports:

  • 2 × USB 2.0 for backup and device connectivity

• Power Supply:

  • 12 VDC ±10%

• Power Consumption:

  • ≤10 W (without HDD)

• Color:

  • Durable black finish, suitable for desktop installations

• Operating Environment:

  • Temperature: -10°C to 55°C (14°F to 131°F)

  • Humidity: 10% to 90% (non-condensing)

The IDS-7204HQHI-M1/XT offers smart security with compact reliability. Designed for users who need intelligent detection and HD video recording in smaller surveillance setups, it blends traditional analog compatibility with the power of AI — making it ideal for home offices, retail counters, and small commercial spaces.
