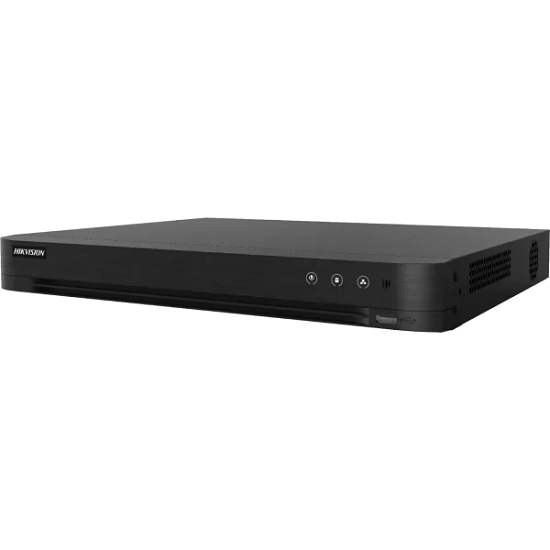

8-Channel Turbo HD DVR with AcuSense – Model: IDS-7208HQHI-M1/XT

The IDS-7208HQHI-M1/XT is an intelligent 8-channel high-definition DVR designed to enhance traditional analog surveillance systems with smart analytics and improved efficiency. Featuring integrated AcuSense technology, this DVR offers precise human and vehicle classification, minimizing false alarms and streamlining security operations. It supports hybrid signal formats, high-resolution recording, and remote access, making it ideal for professional-grade installations in small to mid-sized environments.

Key Features:

• Model: IDS-7208HQHI-M1/XT

• Video Input Channels:

  • 8 analog HD channels (supports TVI, AHD, CVI, CVBS)

  • Up to 12 IP channels (with enhanced IP mode enabled), with IP resolution support up to 6 MP per channel

• AcuSense Smart Functions:

  • Deep learning-based human and vehicle classification

  • Accurate motion detection and false alarm reduction

  • Smart playback and search by target type (human/vehicle)

• Video Compression:

  • Supports H.265 Pro+, H.265 Pro, H.265, and H.264 for efficient video storage and transmission

• Video Recording:

  • Up to 5MP Lite resolution on analog channels

  • Real-time encoding and multi-resolution support

• Display Outputs:

  • HDMI Output: Up to 4K (3840 × 2160) resolution

  • VGA Output: Up to 1080p (1920 × 1080) resolution

  • Simultaneous HDMI and VGA display

• Audio Support:

  • 1 RCA audio input and 1 RCA audio output

  • Two-way audio supported over coaxial cable

• Playback Capability:

  • Up to 8-channel synchronous playback

  • Smart playback by human/vehicle filtering for efficient review

• Storage:

  • 1 SATA interface, supports up to 10 TB hard disk drive

• Alarm Interface:

  • 4 alarm inputs, 1 alarm output for event-triggered actions

• Network Interface:

  • 1 RJ-45 Ethernet port (10/100 Mbps)

  • Remote access via web browser, CMS software, and mobile app

• USB Interface:

  • 2 × USB 2.0 ports for backup and external device support

• Power Supply:

  • 12 VDC ±10%

• Power Consumption:

  • ≤ 10 W (excluding hard disk)

• Color:

  • Sleek black housing designed for desktop or rack-mounted setups

• Operating Conditions:

  • Temperature: -10°C to 55°C (14°F to 131°F)

  • Humidity: 10%–90% (non-condensing)

The IDS-7208HQHI-M1/XT bridges traditional analog systems with modern smart technology. It's the perfect DVR solution for users who need advanced detection, high-quality recording, and reliable performance in a compact, easy-to-deploy form — making it suitable for offices, retail stores, homes, and small commercial properties.
