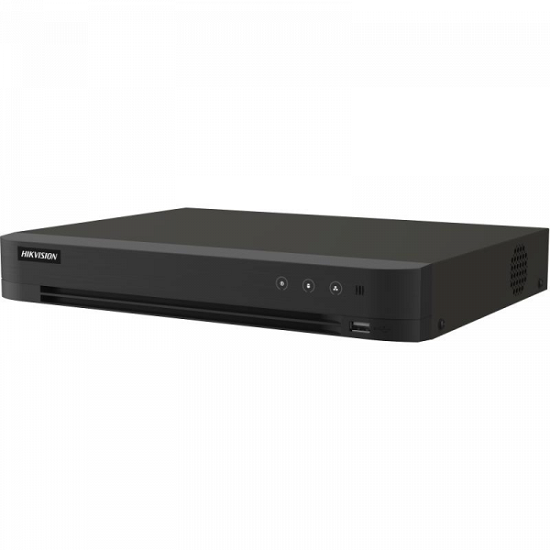

16-Channel Turbo HD DVR with AcuSense – Model: IDS-7216HQHI-M1/XT

The IDS-7216HQHI-M1/XT is a smart 16-channel HD digital video recorder (DVR) featuring integrated AcuSense technology for intelligent video analysis. It supports high-definition video input across multiple signal formats and offers reliable storage, real-time recording, and advanced motion detection — all in a compact and efficient design ideal for commercial, residential, or enterprise-grade surveillance systems.

Key Features:

• Model: IDS-7216HQHI-M1/XT

• Video Input:

  • Supports 16 analog HD channels (TVI/AHD/CVI/CVBS)

  • Supports up to 18 IP channels total (with enhanced mode enabled), up to 6 MP resolution per IP camera

• AcuSense Technology:

  • Human and vehicle classification based on deep learning

  • False alarm reduction for line crossing and intrusion events

  • Fast event search and smart playback by target type

• Video Resolution:

  • Analog camera support up to 5MP Lite / 4MP / 1080p / 720p

  • Real-time encoding at multiple resolutions (1080p/720p/WD1)

• Audio:

  • 16 audio inputs (via coaxial)

  • 1 audio output (RCA)

  • Two-way audio communication supported

• Video Compression:

  • Supports H.265 Pro+, H.265 Pro, H.265, and H.264 for high-efficiency encoding

• Display Output:

  • HDMI and VGA simultaneous output

  • HDMI supports up to 4K (3840×2160) resolution

• Playback & Recording:

  • Up to 16 channels simultaneous playback

  • Smart playback with target-type filtering (human/vehicle)

• Storage:

  • 1 SATA interface, supports HDDs up to 10 TB

• Network:

  • 1 RJ-45 10/100 Mbps Ethernet port

  • Remote viewing supported via mobile app, web browser, and CMS software

• USB Interface:

  • 2 x USB 2.0 ports for data backup, mouse control, or firmware upgrades

• Alarm I/O:

  • 4 alarm inputs, 1 alarm output

• Power Supply:

  • 12 VDC

• Power Consumption:

  • <15 W (excluding hard disk)

• Color:

  • Matte black enclosure with rack-mount and desktop compatibility

• Operating Conditions:

  • Temperature: -10°C to 55°C (14°F to 131°F)

  • Humidity: 10%–90% (non-condensing)

The IDS-7216HQHI-M1/XT offers the power of real-time HD recording and intelligent analytics in a flexible, hybrid system. Its ability to intelligently filter motion events and classify human and vehicle targets makes it ideal for applications where accurate detection and fast retrieval of critical footage are essential.
