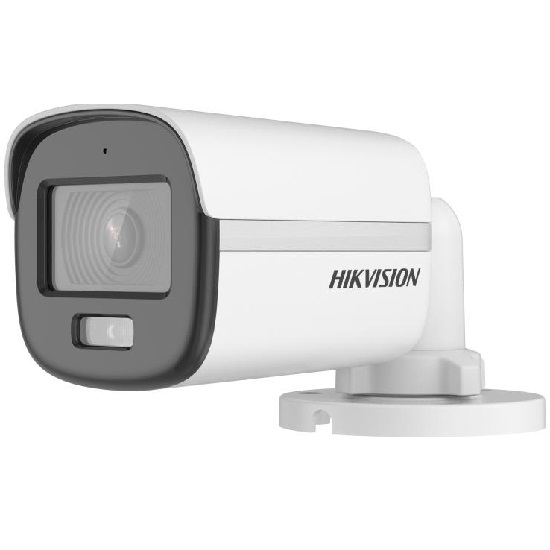

5MP Fixed Bullet HD Analog Camera – Model: DS-2CE10KF0T-FS

The DS-2CE10KF0T-FS is a high-resolution 5MP bullet-style HD analog camera, delivering excellent image clarity and real-time audio recording in a compact, weather-resistant design. Built for flexibility and performance, this camera is ideal for outdoor or indoor applications requiring high-definition video with audio over coaxial cable.

Key Features:

• Model: DS-2CE10KF0T-FS

• Camera Type: Fixed bullet-style HD analog camera

• Image Sensor: High-performance 5MP CMOS sensor

• Effective Resolution: 2560 × 1944 (5 megapixels) for ultra-clear imaging

• Lens Options:

  • 2.8 mm fixed lens (wide angle)

  • Optional 3.6 mm lens variant for narrower field of view

• Day/Night Function:

  • Smart IR technology adjusts infrared intensity automatically to prevent overexposure in night vision

  • IR Distance: Up to 30 meters (98 feet) for clear visibility in low light or complete darkness

• Illumination Type:

  • Built-in IR LEDs for reliable nighttime monitoring

• Audio Capabilities:

  • Integrated microphone for audio over coaxial transmission

  • Enables synchronized audio and video recording

• Video Output Modes:

  • Default: HD-TVI

  • Switchable to AHD, CVI, or CVBS via UTC (Up-the-Coax) control for broader compatibility

• Image Enhancements:

  • Digital Wide Dynamic Range (D-WDR)

  • 3D Digital Noise Reduction (3D DNR)

  • Backlight Compensation (BLC)

  • Automatic gain control and white balance for optimal image quality

• Housing & Protection:

  • IP67-rated weatherproof housing for robust outdoor use

  • Dust-tight and water-resistant against harsh environmental conditions

• Color:

  • White body with a modern, streamlined bullet design

• Power Supply:

  • 12 VDC ±25%

• Power Consumption:

  • Maximum 4.6 W (with IR on)

• Operating Temperature:

  • From -40°C to 60°C (-40°F to 140°F)

  • Humidity: Up to 90% (non-condensing)

This camera is an ideal choice for applications requiring high-resolution video, reliable night vision, and built-in audio – all in a rugged bullet-style form factor. It’s well-suited for residential perimeters, small businesses, and outdoor facilities needing dependable HD analog surveillance.
