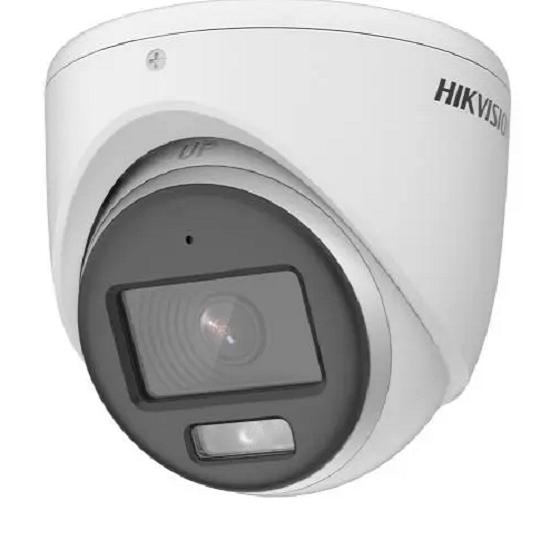

5MP Fixed Turret HD Analog Camera – Model: DS-2CE70KF0T-MFS

The DS-2CE70KF0T-MFS is a high-definition 5MP analog turret camera designed to deliver clear and detailed video in a variety of lighting environments. Engineered for compatibility with HD-TVI systems, this camera features enhanced night vision, built-in audio, and a compact form factor suitable for indoor and outdoor installations.

Key Features:

• Model: DS-2CE70KF0T-MFS

• Camera Type: Fixed turret-style HD analog camera

• Image Sensor: 5MP CMOS sensor, delivering sharp and vibrant video output

• Effective Resolution: 2560 × 1944 (5 MP) high-definition imaging

• Lens Options:

  • 2.8 mm fixed lens (optional 3.6 mm variant depending on model availability)

  • Wide-angle coverage for broad surveillance areas

• Day/Night Performance:

  • Smart IR technology for enhanced night visibility

  • IR distance: up to 30 meters (98 feet) for clear imaging in total darkness

• Illumination:

  • Infrared (IR) LEDs for low-light/night-time monitoring

• Audio Support:

  • Built-in microphone for real-time audio recording over coaxial cable

  • Ensures synchronized video and audio monitoring

• Video Output:

  • Supports TVI output (default)

  • Switchable to AHD, CVI, or CVBS via UTC (Up-the-Coax) control

• Image Enhancements:

  • Digital Wide Dynamic Range (D-WDR)

  • 3D Digital Noise Reduction (3D DNR)

  • Auto white balance, AGC, and BLC for improved clarity in various environments

• Housing & Build:

  • Compact and robust metal housing

  • Weather-resistant (IP67-rated) for reliable outdoor use

• Color:

  • White dome body with a low-profile, modern design

• Power Supply:

  • 12 VDC ±25%

• Power Consumption:

  • Max 4.3 W with IR on

• Operating Temperature:

  • From -40°C to 60°C (-40°F to 140°F)

  • Humidity: up to 90% (non-condensing)

This model is ideal for users looking for a cost-effective, high-resolution analog surveillance solution with audio support and solid low-light performance. Perfect for residential, retail, office, and small business environments where video quality and reliable operation are priorities.
