???? DS-7616NI-Q2 16-Channel Network Video Recorder (NVR)

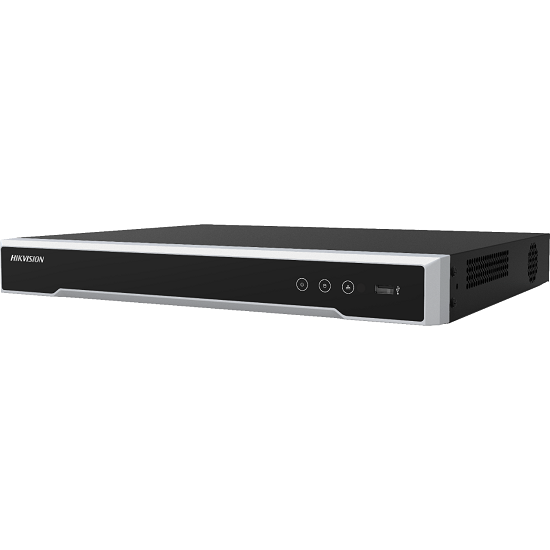

The DS-7616NI-Q2 is a high-performance 16-channel NVR designed for medium to large-scale IP surveillance systems. With advanced video compression, large storage capacity, and reliable multi-channel decoding, it offers a robust solution for comprehensive video management.

???? Key Specifications:

• Model: DS-7616NI-Q2

• Video Input: Supports up to 16 IP cameras

• Maximum Resolution: Up to 8MP recording per channel

• Decoding Capability: Up to 2-ch @ 8MP, 4-ch @ 4MP, or 8-ch @ 1080p simultaneous playback

• Video Output: HDMI and VGA outputs (up to 4K resolution on HDMI)

• Video Compression: H.265+/H.265/H.264+/H.264 for efficient bandwidth and storage management

• Audio Support: Audio via IP camera input (no built-in mic or RCA audio input)

• SATA Interface: 2 × SATA interfaces, each supporting up to 10TB (max 20TB total, HDD not included)

• Network Interface: 1 × RJ45 10/100/1000 Mbps Ethernet port

• USB Interface: 2 × USB 2.0, 1 × USB 3.0 for fast data backup and peripheral support

• Color: Sleek black enclosure with LED indicators

• Power Supply: 12V DC

⚙️ Features:

• Simultaneous live view, recording, and playback for up to 16 IP channels

• Supports smart search, motion detection, and event playback

• Remote access via mobile apps and desktop software

• ONVIF compatibility for integration with a wide range of IP cameras

• Efficient video management with a user-friendly interface

• 19-inch rack-mountable (1U form factor)

This NVR is ideal for office buildings, warehouses, retail chains, and other applications requiring multi-camera monitoring with centralized control.
