Model: DS‑2CE71D0T‑PIRLO

Description:

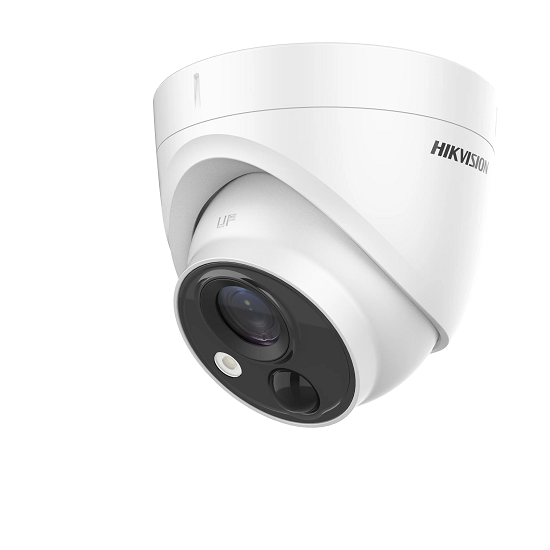

The DS‑2CE71D0T‑PIRLO is a 2MP HD-TVI fixed turret camera from Hikvision's IOT Series, designed to enhance security with integrated PIR (Passive Infrared) motion detection and visual deterrence features. It offers reliable performance in outdoor environments, providing clear imaging and proactive alerting capabilities.

Key Specifications

• Resolution / Image Sensor: 2MP CMOS sensor with a maximum resolution of 1920 × 1080 pixels.

• Lens: Fixed focal lengths of 2.8mm and 3.6mm, providing horizontal fields of view of 103° and 82.2°, respectively.

• IR Distance: Advanced EXIR 2.0 technology enables infrared illumination up to 20 meters, ensuring clear night-time imaging.

• Audio: No built-in microphone; audio capture is not supported.

• Mode: Analog HD-TVI output with support for 1080p at 25/30 fps.

• PIR Detection: Integrated PIR sensor for motion detection, triggering strobe light alarms and alarm outputs to deter intruders.

• WDR: Digital Wide Dynamic Range (WDR) for balanced exposure in challenging lighting conditions.

• Weather Resistance: IP67-rated housing, ensuring protection against dust and water ingress.

• Power Supply: 12V DC ±25%, with a maximum power consumption of 2.9W.

• Build: Front cover made of metal, with a plastic main body; dimensions are 109.8mm × 89.75mm, weighing approximately 237g.

Use Case / Application

Ideal for outdoor surveillance in residential, commercial, and industrial settings, the DS‑2CE71D0T‑PIRLO provides proactive security measures through its PIR detection and visual alarm features. Its robust construction and advanced imaging capabilities make it suitable for monitoring entrances, perimeters, and other critical areas.
