Model: DS‑2CD1143G2‑LIU

Description:

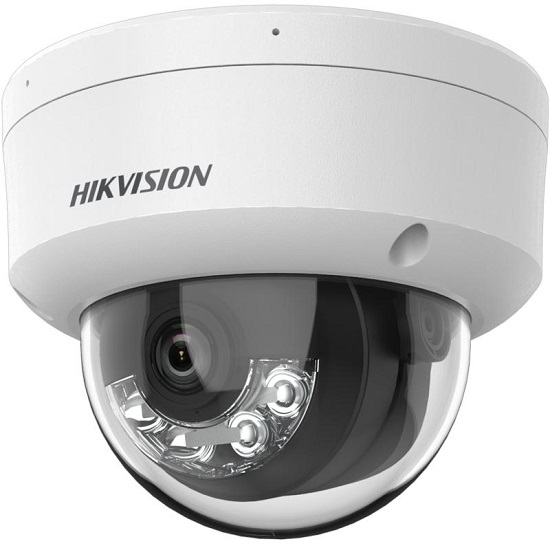

The DS‑2CD1143G2‑LIU is a 4MP fixed dome network camera from Hikvision's Smart Dual Light series. It combines high-resolution imaging with intelligent lighting and audio features, making it suitable for both day and night surveillance in various environments.

Key Specifications

• Resolution / Image Sensor: 4MP (2560 × 1440) with a 1/3" Progressive Scan CMOS sensor.

• Lens: Fixed focal lengths of 2.8mm (horizontal FOV: 98°) and 4mm (horizontal FOV: 78°), with an aperture of F1.6.
  IR & Lighting: Smart Hybrid Light combining IR and white light, with a range up to 30 meters.

• Audio Support: Built-in microphone with noise filtering; supports multiple audio compression formats including G.711, AAC-LC, etc.

• Video Output / Mode: IP-based (no analog); compression via H.265+, H.265, H.264+, H.264; supports human and vehicle detection, ONVIF Profile S/T/G (‑F model).

• Weatherproof / Build: Dome-style housing rated IP67 (dust and water resistant), IK08 (vandal resistant); metal and plastic design; Ø121.4 × 97.7 mm; weight ~550 g. Smart Features: Human/vehicle detection, motion detection, privacy masking, digital WDR, BLC/HLC, 3D-DNR, ROI, etc.

• Storage: Optional microSD card slot on ‑F variants, supporting up to 512 GB local storage.

Use Case / Application

This camera is ideal for indoor and outdoor surveillance in areas requiring discreet monitoring with full-color imaging at night. Its built-in microphone adds audio context, and smart detection features enhance security by reducing false alerts.
