Model: DS‑2CD1043G2‑LIU

Description:

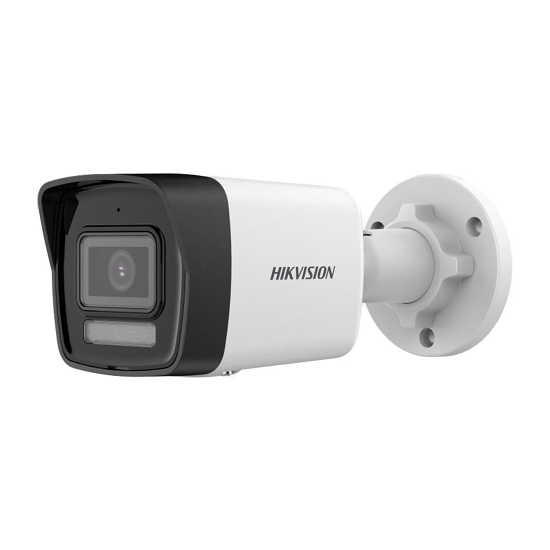

The DS‑2CD1043G2‑LIU is a 4MP bullet-style IP camera in Hikvision’s Smart Hybrid Light series. It delivers highly detailed color images both during the day and in low-light conditions, enhanced by built-in audio and intelligent detection capabilities.

Key Specifications

• Resolution / Image Sensor: 4 MP (2560 × 1440) via 1/3″ progressive-scan CMOS sensor Lens: Fixed 2.8 mm or 4 mm lens options

• • 2.8 mm FOV ~98° horizontal × 54° vertical (diagonal 114°)

  • 4 mm FOV ~78° horizontal (diagonal 93°)

• IR Distance (Night Vision): Up to 30 m using smart hybrid LED that combines IR and white lighting

• Audio Support: Built‑in microphone with noise filtering; supports audio compression formats such as G.711, AAC‑LC, etc.

• Video Output / Mode: Pure IP connection with dual-stream support; efficient compression via H.265+, H.265, H.264+, H.264; supports human/vehicle detection

• Weatherproof & Build: Bullet-style housing rated IP67 (dust‑tight and water‑proof), metal and plastic build, approx. 270 g weight; operating range –30 °C to +60 °C

• Storage: Optional microSD slot (up to 512 GB) available on ‑F variants

Additional Features

• Smart Hybrid Light: Automatically switches between color white light and IR based on ambient conditions, maintaining full-color performance until complete darkness

• Image Enhancements: Includes 120 dB WDR, 3D-DNR, BLC/HLC, privacy masking, and region-of-interest (ROI) capability

• Frame Rate: Up to 30 fps at 2560 × 1440 resolution; sub-stream support for lower resolutions at up to 25 fps or 24 fps depending on region

• Installation Flexibility: Supports either 12 V DC power or PoE (IEEE 802.3af); consumes up to ~6.5 W via PoE

Use Case / Application

This camera is well-suited for outdoor surveillance where true full-color video is important around the clock—such as entrance gates, perimeters, driveways, and business frontages. The built-in microphone enhances situational awareness, while human/vehicle detection reduces false triggers and aids efficient monitoring.
