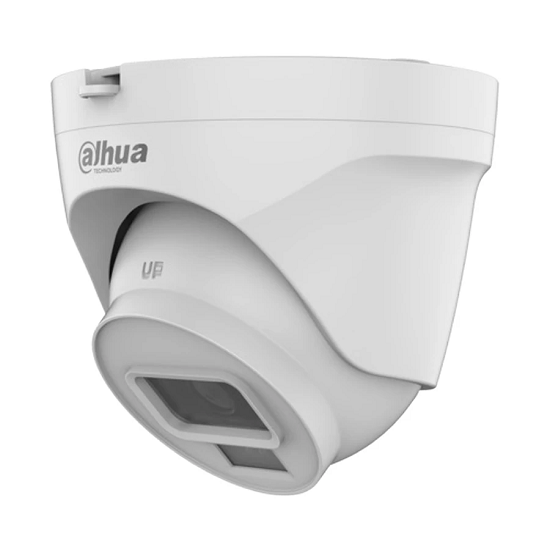

Product: DH-IPC-HDW1230T2-S5 IR Eyeball IP Camera

The DH-IPC-HDW1230T2-S5 is a high-performance IR Eyeball IP Camera designed for reliable and efficient surveillance in both indoor and outdoor environments. With a compact design and advanced imaging features, this camera delivers clear, high-definition video day and night, making it ideal for homes, offices, commercial properties, and other security-sensitive areas.

Key Features:

• Model: DH-IPC-HDW1230T2-S5

• Camera Type: Eyeball (Turret) IP Camera

• Lens: Fixed lens, 2.8mm (provides a wide-angle view for general monitoring)

• Image Sensor: 1/2.7” Progressive Scan CMOS

• Resolution: Up to 2MP (1920 × 1080) Full HD

• IR Distance: Up to 30 meters (provides clear night vision in low-light or complete darkness)

• IR Illumination: Smart IR with automatic intensity adjustment to avoid overexposure

• Day/Night Function: True Day/Night with IR Cut Filter (ICR)

• Video Compression: H.265 / H.264 dual-stream encoding

• Color: White housing for discreet installation

• Audio Status: No built-in microphone (audio not supported)

• Power Supply: 12V DC ±30% / PoE (Power over Ethernet, IEEE802.3af)

• Power Consumption: Less than 5.3W

• Weatherproof Rating: IP67 (Dust-tight and protected against water immersion)

• Operating Conditions: -30°C to +60°C, suitable for harsh environments

• Housing Material: Durable metal construction for enhanced protection

• Installation Type: Wall or ceiling mountable with 3-axis adjustment for flexible placement

• Network Connectivity: RJ-45 Ethernet port (10/100Base-T)

• ONVIF Compliance: Supports standard protocols for third-party integration

• Other Features: Motion detection, privacy masking, area intrusion detection, video tampering alert

Applications:

Ideal for use in retail stores, residential areas, office buildings, parking lots, and warehouse facilities, the DH-IPC-HDW1230T2-S5 offers dependable surveillance with a compact footprint.
