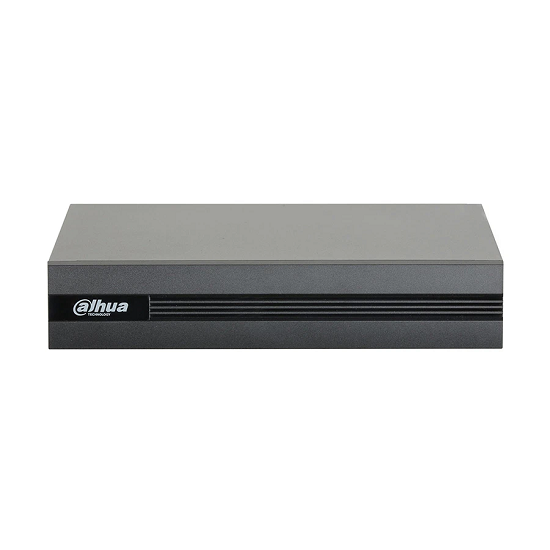

Product Model: DH-XVR1B08H-I

Overview

This digital video recorder is designed to provide reliable multi-channel surveillance with support for various analog and IP video formats. It features smart motion detection, high-efficiency video compression, and user-friendly operation, making it ideal for small to mid-sized security systems.

Technical Specifications

• Model: DH-XVR1B08H-I

• Video Input:

  • 8 analog BNC video channels

  • Supports up to 4 IP channels by default

  • Expandable up to 12 IP channels by converting analog channels

  • Each IP channel supports up to 6MP resolution

• Video Compression:

  • AI Coding

  • Smart H.265+

  • H.265

  • Smart H.264+

  • H.264

• Recording Resolutions:

  • 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF

  • Main stream:

    • 5M-N: 1–10 fps

    • 4M-N/1080P: 1–15 fps

    • Lower resolutions: up to 25/30 fps

  • Sub-stream: CIF (1–15 fps)

• Audio Support:

  • 1 RCA audio input

  • 1 RCA audio output

  • Audio over coaxial supported for all 8 channels

  • Two-way audio available via RCA input

  • Audio compression: G.711A, G.711U, PCM

• Display Output:

  • 1 HDMI output (up to 1080P)

  • 1 VGA output (up to 1080P)

  • Simultaneous output supported

• Multi-Screen View:

  • Options for 1 / 4 / 8 / 9 camera views

  • Up to 16-camera view when IP channels are added

• Playback:

  • Up to 8-channel simultaneous playback

  • Smart search, event search, motion detection playback

  • Playback controls: play, pause, FF, REW, frame-by-frame

• Smart Features:

  • Smart Motion Detection (SMD Plus) on up to 8 analog channels

  • Filters out non-human/non-vehicle movements for accurate alerts

• Alarm & Event Management:

  • Motion detection

  • Video loss

  • Tampering

  • System warnings (HDD full, network issues, etc.)

  • Alarm actions: recording, snapshots, buzzer, screen alert, email

• Network Support:

  • 1 RJ-45 Ethernet port (10/100 Mbps)

  • Supports remote viewing via software or mobile app

  • Network protocols supported include standard communication and management protocols

  • IP camera auto-detection and configuration

• Storage:

  • 1 SATA interface

  • Supports hard drives up to 16TB

• Backup Options:

  • USB backup

  • Network backup

• USB Ports:

  • 2 USB 2.0 ports (1 front, 1 rear)

• Power Supply:

  • 12V DC, 2A

  • Power consumption: less than 7W (without HDD)

• IR Distance:

  • Not applicable (This is a recorder; IR applies to cameras)

• Color:

  • Black metal housing

• Dimensions:

  • 198mm × 203mm × 41mm

• Weight:

  • Net: approx. 0.57 kg

  • Gross: approx. 1.05 kg

• Environmental Conditions:

  • Operating temperature: –10°C to +45°C

  • Storage temperature: –20°C to +60°C

  • Humidity: 10% to 90% (non-condensing)
