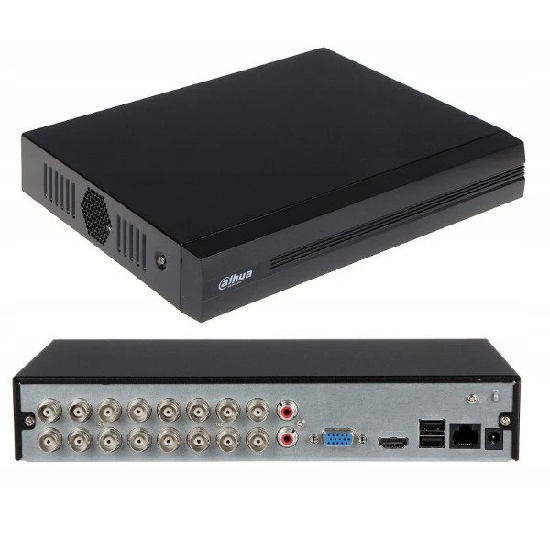

Product Model: DH-XVR1B16-I

Overview

The DH-XVR1B16-I is a 16-channel digital video recorder designed to deliver high-efficiency video compression, multiple input formats, and smart motion detection features. It supports analog and IP cameras, offering flexibility and powerful performance for mid-range surveillance systems.

Technical Specifications

• Model: DH-XVR1B16-I

• Video Input:

  • 16 BNC analog channels

  • Auto-detection of multiple video formats (up to 1080N/720P)

  • Supports up to 2 additional IP channels by default (up to 6MP resolution per channel)

  • With analog-to-IP channel conversion, supports up to 18 IP channels total

• Video Compression:

  • AI Coding

  • Smart H.265+

  • H.265

  • Smart H.264+

  • H.264

• Recording Resolution and Frame Rate:

  • Channel 1: 1080N/720P @ 1–25/30 fps

  • Remaining channels: 1080N/720P @ 1–15 fps

  • Lower resolutions (960H, D1, CIF): up to 25/30 fps

  • Sub-stream: CIF @ 1–7 fps

• Audio Support:

  • 1 RCA audio input (external)

  • 1 RCA audio output

  • 16-channel audio over coaxial

  • Two-way audio support via RCA input

  • Audio compression formats: G.711A, G.711U, PCM

• Playback & Search:

  • Supports up to 16-channel simultaneous playback

  • Playback search by time, date, event, motion detection, and tags

  • Playback modes include instant, event, and smart playback

• Storage:

  • 1 SATA port

  • Supports hard disk drives up to 16TB capacity

  • Backup options via USB or network

• Video Output:

  • 1 HDMI output (up to 1080P)

  • 1 VGA output (up to 1080P)

  • Simultaneous video output on both ports

• Display Options:

  • Multi-screen display: 1, 4, 8, 9, 16 views

  • When using IP extension: up to 25 views

• Smart Functions:

  • Smart Motion Detection (SMD Plus) on up to 8 analog channels

  • Filters out false alarms caused by non-human or non-vehicle motion

• Alarm Features:

  • Motion detection

  • Video loss

  • Camera tampering

  • Alarm recording, buzzer, snapshot, email alert, and log generation

  • Network-related alerts such as IP conflict, HDD error, HDD full

• Network Interface:

  • 1 RJ-45 Ethernet port (10/100 Mbps)

  • Supports remote monitoring via desktop and mobile applications

  • Protocol support includes basic networking and security communication standards

  • Compatible with standard integration protocols for third-party devices

• IR Distance:

  • Not applicable (this model is a video recorder and does not include infrared functionality)

• Power Supply:

  • 12V DC, 2A

  • Power consumption: less than 10W (without hard disk)

• Housing / Color:

  • Compact 1U metal case

  • Color: Black

  • Dimensions: 260mm × 231mm × 48mm

  • Net weight: approximately 0.89 kg

  • Gross weight: approximately 1.42 kg

• Environmental Conditions:

  • Operating temperature: –10°C to +45°C

  • Storage temperature: –20°C to +60°C

  • Relative humidity: 10% to 90% (non-condensing)
