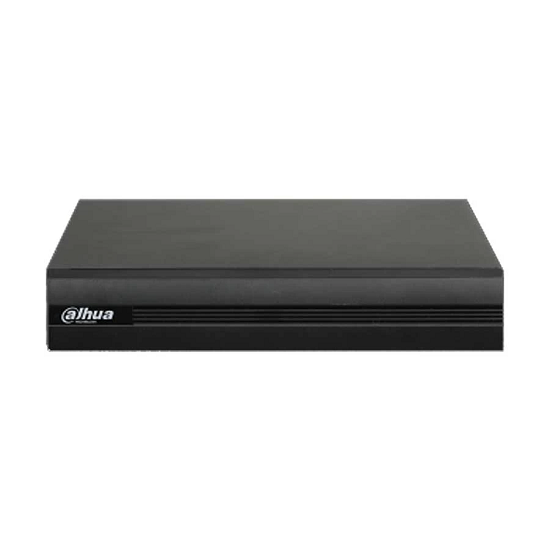

Product Model: DH-XVR1B16H-I

Overview

The DH-XVR1B16H-I is a high-performance 16-channel digital video recorder designed for reliable and efficient surveillance. It supports multiple video formats and smart functions, making it ideal for small to medium-scale security systems.

Technical Specifications

• Model: DH-XVR1B16H-I

• Video Input:

  • 16 channels (BNC) with auto-detection of multiple formats

  • Supports an additional 8 IP channels, expanding total input to 24 channels

  • IP camera input supports up to 6MP resolution

• Video Compression:

  • Smart H.265+, H.265, Smart H.264+, H.264, AI coding

• Maximum Incoming Bandwidth:

  • Up to 128 Mbps

• Recording Resolution & Frame Rates:

  • Supports 5MP, 4MP, 1080P, 720P, 960H, D1, CIF

  • Multiple frame rate options depending on resolution (up to 30fps)

• Audio Support:

  • 1-channel RCA input

  • 1-channel RCA output

  • 16-channel audio over coaxial cable

  • Two-way audio communication via RCA

  • Audio compression: G.711A, G.711U, PCM

• Playback & Recording:

  • Simultaneous playback for up to 16 channels

  • Search modes include time/date, motion detection, and smart playback

  • Backup via USB or network

• Storage:

  • 1 SATA interface, supports HDD up to 16TB (not included)

• IR Distance:

  • Not applicable (this is a recorder, not a camera)

• Display Output:

  • HDMI and VGA simultaneous video output

  • HDMI supports up to 4K resolution

  • VGA supports up to 1080P

• Multi-screen Display Options:

  • Configurable layouts: 1/4/8/9/16 channels (up to 25 with IP extension)

• Network Interface:

  • 1 RJ-45 port (10/100 Mbps Ethernet)

  • Supports remote access through mobile or desktop client software

• Alarm Features:

  • Motion detection

  • Video loss

  • Tampering alerts

  • System notifications: no disk, disk error, disk full, IP conflict

• Smart Functions:

  • SMD Plus (Smart Motion Detection)

  • Filters false alarms triggered by animals, lights, etc.

  • Recognizes human and vehicle targets accurately

• Power Supply:

  • DC 12V, 2A

  • Power consumption: less than 12W (without HDD)

• Housing / Color:

  • Compact black metal chassis

  • Dimensions: 260mm × 231mm × 48mm

  • Weight: Approx. 0.93kg (net), 1.43kg (gross)

• Operating Conditions:

  • Temperature: –10°C to +45°C

  • Humidity: 10%–90% (non-condensing)
