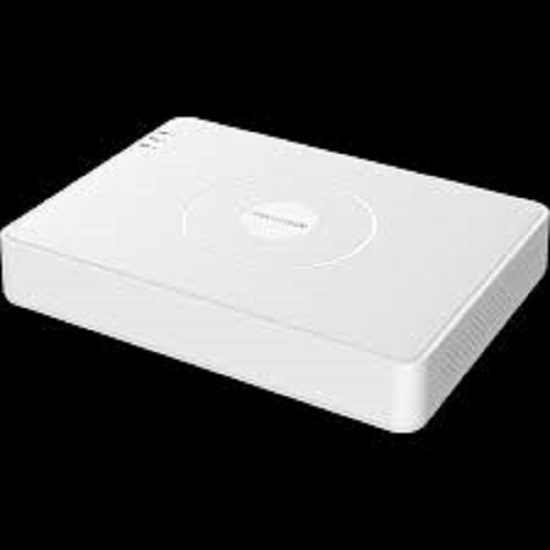

Model: DS-7116HGHI-M1

Video Input:

• 16 channels BNC interface (supports HDTVI, AHD, CVI, and CVBS signal input)

• Flexible compatibility with multiple video formats

Video Compression:

• Supports H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 for optimized storage efficiency

Audio Input:

• 1 channel RCA audio input

• Coaxial audio supported on select video channels

Video Output:

• 1 HDMI output (up to 1080p)

• 1 VGA output (up to 1080p)

• Simultaneous HDMI/VGA output for convenient display setup

Recording Resolution:

• Up to 1080p Lite @ 15 fps

• Supports 720p real-time recording

Playback:

• Up to 16 channels simultaneous playback

• Customizable playback zone and smart search features

Hard Drive Support:

• 1 SATA interface (supports up to 6TB of internal storage)

Network Interface:

• 1 RJ45 10/100 Mbps Ethernet port for remote access and configuration

USB Interface:

• 2 × USB 2.0 ports for data backup, firmware upgrades, and mouse control

IR Distance (with compatible cameras):

• Typically up to 20–40 meters (camera dependent)

Color:

• Compact design in matte black or dark gray finish

Power Supply:

• 12V DC

Power Consumption:

• ≤ 15W (without hard disk)

Smart Functions:

• Motion detection

• Video loss alerts

• Tampering alarms

• Event-triggered recording

Installation Type:

• Desktop-mountable, compact casing suitable for various environments

Operating Conditions:

• Temperature: -10°C to +55°C

• Humidity: ≤ 90% (non-condensing)

Additional Features:

• Multi-format video input for flexible deployment

• Remote viewing supported via software or mobile applications
