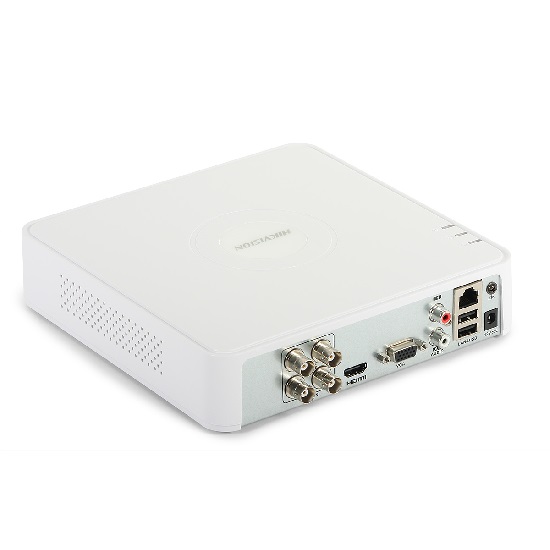

Model: DS-7104HQHI-K1
Video Input: 4 channels HDTVI/AHD/CVI/CVBS
Video Compression: H.265+/H.265/H.264+/H.264
Audio Input: 1 channel via RCA (Coaxial audio supported)
Video Output: HDMI and VGA simultaneous output (up to 1080p resolution)
Recording Resolution: Up to 1080p Lite at 15 fps
Playback: 4 channels simultaneous playback
Hard Drive Support: 1 SATA interface (up to 6TB capacity)
Network Interface: 1 RJ45 10/100 Mbps Ethernet port
USB Interface: 2 × USB 2.0 ports
IR Distance (for connected compatible cameras): Up to 20–40 meters depending on camera specifications
Color: Typically black or dark gray housing
Power Supply: 12V DC
Power Consumption: ≤ 10W (without hard disk)
Remote Access: Supported via mobile app and browser
Audio Output: 1 channel RCA output
Smart Functions: Basic motion detection and event-triggered recording
Video Signal Standard: Supports multiple signal formats (TVI, AHD, CVI, CVBS) for flexible integration
Installation Type: Desktop mountable
Operating Conditions: -10°C to +55°C, humidity ≤ 90% (non-condensing)
