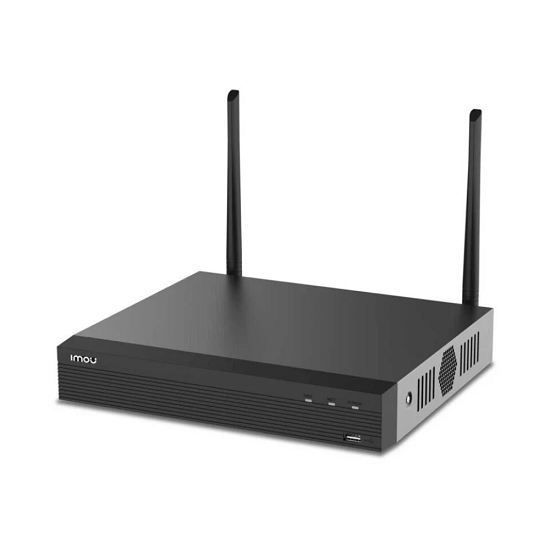

Product Description: NVR1104HS-W-S2 – 4-Channel Wireless Network Video Recorder

The NVR1104HS-W-S2 is a compact and efficient 4-channel wireless NVR, purpose-built to manage small-scale IP surveillance systems with simplicity and stability. With support for up to four wireless cameras and a built-in Wi-Fi module, it eliminates the need for complex cabling while maintaining reliable HD recording. Designed for homes, small offices, and retail environments, this NVR offers user-friendly operation, intelligent management features, and remote access capabilities.

Key Features:

• Model: NVR1104HS-W-S2

• Type: 4-Channel Wireless Network Video Recorder

Video & Recording:

• Max Input Channels: 4 wireless IP cameras

• Supported Resolution: Up to 5MP per channel

• Video Compression: H.265 / H.264 for efficient storage and transmission

• Playback: Supports up to 4-channel synchronous playback

• Display Output:

  • HDMI and VGA (up to 1080p resolution)

Wireless Capability:

• Built-in Wi-Fi Module:

  • 2× High-gain antennas for stable wireless connectivity

  • Auto-pairing with compatible wireless cameras

  • Operating Frequency: 2.4GHz

  • Wi-Fi Standard: IEEE 802.11b/g/n

Storage & Backup:

• Hard Drive Interface:

  • 1× SATA port (supports up to 6TB HDD)

  • HDD not included

• Backup Methods:

  • Via USB device

  • Network-based backup options

Network & Connectivity:

• LAN Interface: 1× RJ-45 Ethernet port (10/100Mbps)

• USB Ports: 2× USB 2.0 for mouse control, backup, or firmware upgrade

• Third-Party Compatibility: ONVIF compliant

Remote Access:

• App & Software Support:

  • Mobile app for live view, playback, notifications, and system settings

  • PC software and web interface for centralized management

• Cloud Connectivity: Easy P2P setup and cloud access for remote monitoring

System & Security:

• User Management: Multi-user support with permissions

• Data Security: Encrypted video streams and secure access protocols

• System Interface: Simple GUI for easy navigation and configuration

Power & Environmental:

• Power Supply: DC 12V / 2A

• Operating Temperature: -10°C to +55°C (14°F to 131°F)

• Humidity: 10%–90% RH (non-condensing)

Build & Design:

• Material: Metal chassis with fanless passive cooling

• Design: Desktop form factor, compact and silent

• Mounting: Tabletop installation

Usage:

The NVR1104HS-W-S2 is an ideal solution for users seeking a wireless surveillance system without the hassle of network wiring. Perfect for residential homes, small shops, and remote spaces, it supports high-resolution recording, efficient video compression, and full remote management—making it a reliable core for any entry-level IP security setup.
