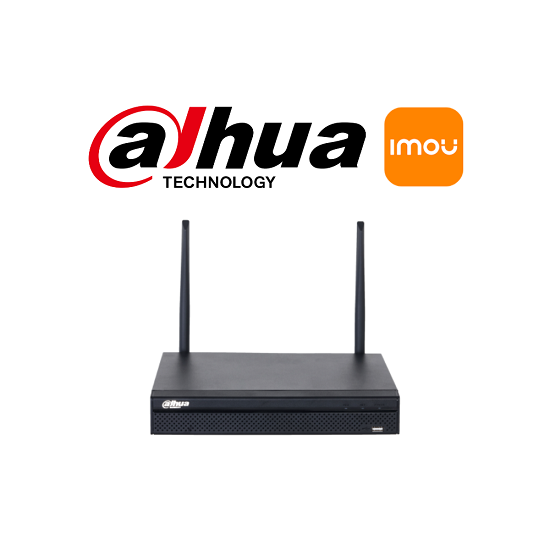

Product Description: NVR1108HS-W-S2 – 8-Channel Wireless Network Video Recorder

The NVR1108HS-W-S2 is a high-performance 8-channel wireless NVR designed to deliver reliable and seamless video recording and management for small to medium surveillance systems. Built for flexibility and ease of use, this NVR supports up to 8 wireless IP cameras, offering hassle-free installation without the need for complex wiring. It’s an ideal central hub for home or business monitoring with real-time video preview, playback, and storage.

Key Features:

• Model: NVR1108HS-W-S2

• Type: Wireless Network Video Recorder (NVR)

Video & Recording:

• Max Input Channels: 8 wireless IP cameras

• Supported Resolutions: Up to 5MP per channel

• Video Compression: H.265 / H.264

• Playback: Up to 4 channels simultaneously

• Display Output:

  • HDMI and VGA ports (up to 1080p resolution)

• Recording Modes:

  • Manual / Schedule / Motion Detection / Alarm Triggered

Wireless Features:

• Built-in Wi-Fi Module:

  • Dual antennas for enhanced range and stability

  • Auto-pairing with compatible wireless cameras

• Wi-Fi Standard: IEEE 802.11 b/g/n (2.4GHz)

Storage & Backup:

• Hard Drive Support:

  • 1 SATA port (up to 6TB HDD capacity)

  • HDD not included by default

• Backup Options:

  • USB storage device (via USB 2.0 port)

  • Remote backup via network

Connectivity:

• Network Interface: 1 RJ-45 10/100 Mbps Ethernet port

• USB Ports: 2 × USB 2.0

• Third-Party Camera Support: ONVIF protocol compliance

Remote Access:

• Mobile & Web Access:

  • Remote viewing via mobile app and PC client software

  • Cloud access for simplified connectivity

• User Interface:

  • Graphical UI for easy configuration and playback control

Security & Management:

• Multi-Level User Management

• Password Protection

• Encrypted Transmission Support

Power & Environment:

• Power Supply: DC 12V / 2A

• Operating Temperature: -10°C to +55°C (14°F to 131°F)

• Humidity: 10%–90% RH, non-condensing

• Chassis: Compact desktop design (fanless)

Dimensions & Build:

• Material: Metal housing with passive cooling

• Form Factor: Small footprint for flexible placement

• Installation: Desktop setup (no rack-mount support)

Usage:

The NVR1108HS-W-S2 is ideal for wireless surveillance systems in homes, retail shops, offices, and other small-scale environments. It offers stable performance with wireless flexibility, making setup quick and user-friendly without sacrificing recording quality or system control.
